Foam Specs

Our PE foam meets Federal Spec A-A-59135/59136 (PPP-C-1752D). The foam resists chemical and caustic jet fuels and is smooth with an easy-to-clean surface.

For toolbox inserts, we usually use ½" thick top foam for the cutout area and heat bond it to a ¼" layer of the same material in a contrasting color.

We also offer Adhesive-Backed Foam, and we can laminate sheets up to five (5) inches thick and can skive sheets down to 1/8" thickness if you require.

Our foam comes in the following formats, sizes and colors:

Foam Sizes & Colors

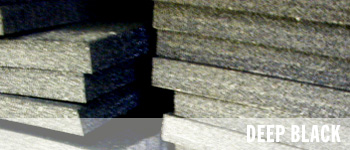

Deep Black Deep Black 6 lb PE
1/4" x 48" x 108" sheets
1/2" x 48" x 108" sheets
1/4" x 48" x 100' rolls

Deep Black 4-lb XPE
1/2" x 54" x 108" sheets
1/2" x 27" x 108" sheets

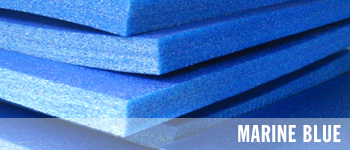

Marine Blue Marine Blue 6 lb PE
1/4" x 48" x 108" sheets
1/2" x 48" x 108" sheets
1/4" x 48" x 100' rolls

Marine Blue 4-lb XPE
1/2" x 54" x 108" sheets
1/2" x 27" x 108" sheets

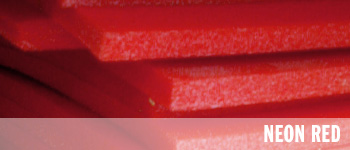

Neon Red Neon Red 6 lb PE
1/4" x 48" x 108" sheets
1/2" x 48" x 108" sheets
1/4" x 48" x 100' rolls


Neon Red 4-lb XPE
1/4" x 54" x 108" sheets
1/4" x 27" x 108" sheets

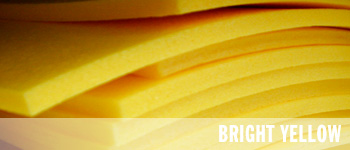

Bright Yellow Bright Yellow 6 lb PE
1/4" x 48" x 108" sheets
1/2" x 48" x 108" sheets
1/4" x 48" x 100' rolls

Bright Yellow 4-lb XPE
1/4" x 54" x 108" sheets
1/4" x 27" x 108" sheets


We can provide any thickness you require up to 5" and there is no minimum order quantity.

 ½" foam is available as a ROLL in 2-lb density XPE or 1.7-lb density PE, Black only.

Foam Specs - Marine Blue

Foam Specs - Deep Black

Foam Specs - Bright Yellow

Foam Specs - Neon Red
Physical Properties Test Method Plank Foam, 6.0 PCF, Type IV, Class 2 Pass/Fail
Compressive Strength-Vertical Direction ASTM D3575 SUFFIX D AT 25% PASS
Compression Set ASTM D3575 TEST A PASS
Compression Creep ASTM D3575 TEST BB - 1000 HR AT 3.0 PSI PASS
Dynamic Cushioning ASTM D3575 SUFFIX CC PASS
Contact Corrosivity FED-STD 101 ASTM 3330 PASS
Flexibility A-A-59135/59136 (PPP-C-1752D) SEC 4.3.3.3.1 PASS
Dimensional Tolerances ASTM D3575 PASS
Water Absorption ASTM D3575 SUFFIX L PASS
Thermal Stability ASTM D3575 SUFFIX S PASS
Static Dissipative EIA 541 APPENDIX F PASS
Surface Resitivity EIA 541 SEC 4.3 PASS
